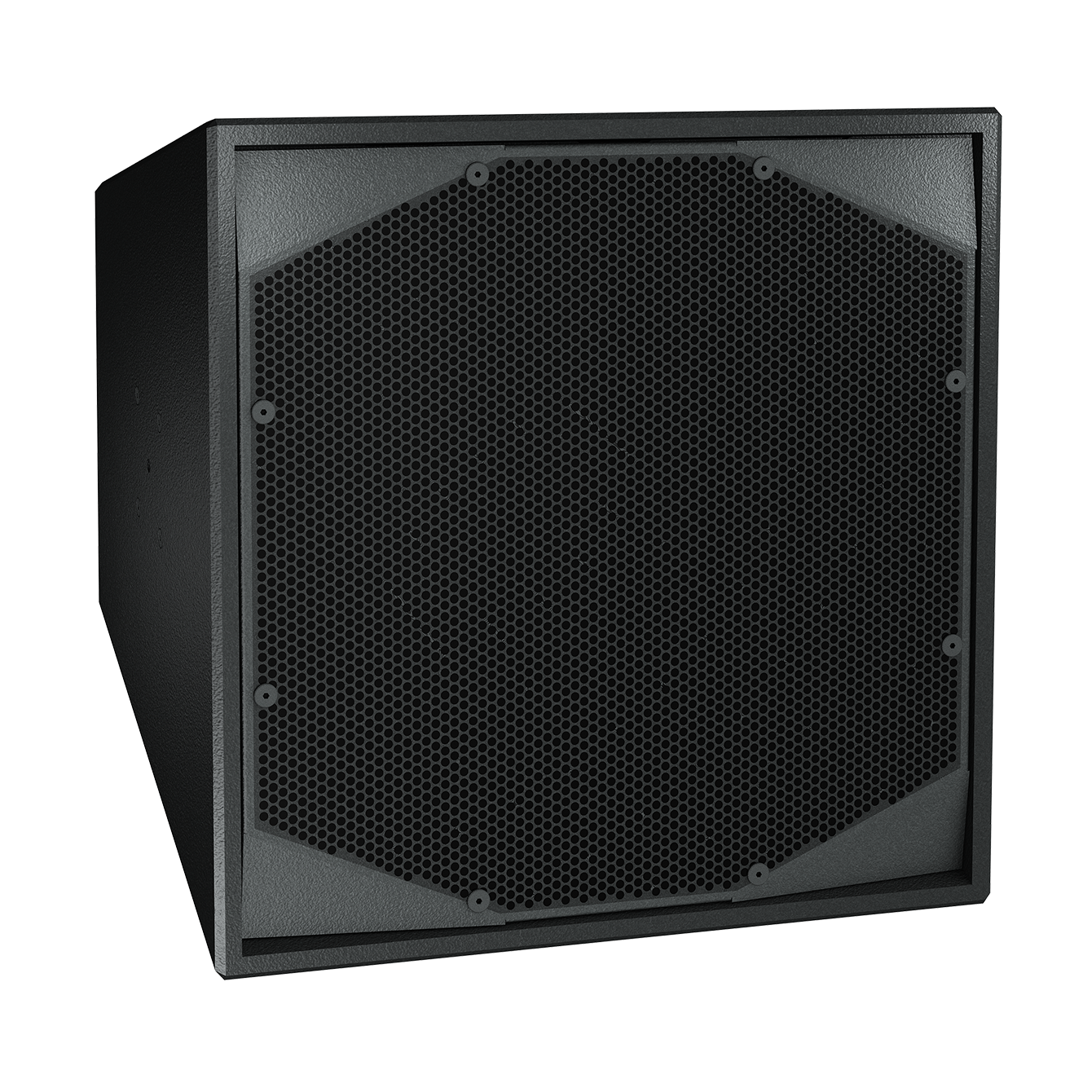

12CX
Clair Brothers
Coaxial, Horn-loaded Loudspeaker
[특 징]
- Coaxial Passive (Standard) or Active (Optional), Horn-loaded Loudspeaker, with grille
- Input Connection:
Active: (1) 4-Position Terminal Strip;
Passive: (1) 2-Position Terminal Strip
- Integrated mounting points (2)
[사 양]
- Frequency Response(+/- 2dB): 50Hz–16kHz
- Recommended Power Amplifier: 1000W to 1200W @ 8 Ohms
- Max. Output: (LF) 131 dB SPL, (HF) 133 dB SPL, (Passive Model) 132 dB SPL
- Drivers: LF: (1) 12”; Voice Coil Diameter 3”
- Nominal Impedance: LF: 8 Ohms, HF: 8 Ohms
- Power Handling: (LF) 350W Program, 700W Peak, (HF) 80W Program, 160W Peak
- Dispersion: 60°H x 60°V (Conic)
- Dimension(H x W x D): 596.9 x 596.9 x 457.2mm
- Weight: Passive 47.6kg / Active 44.4kg
