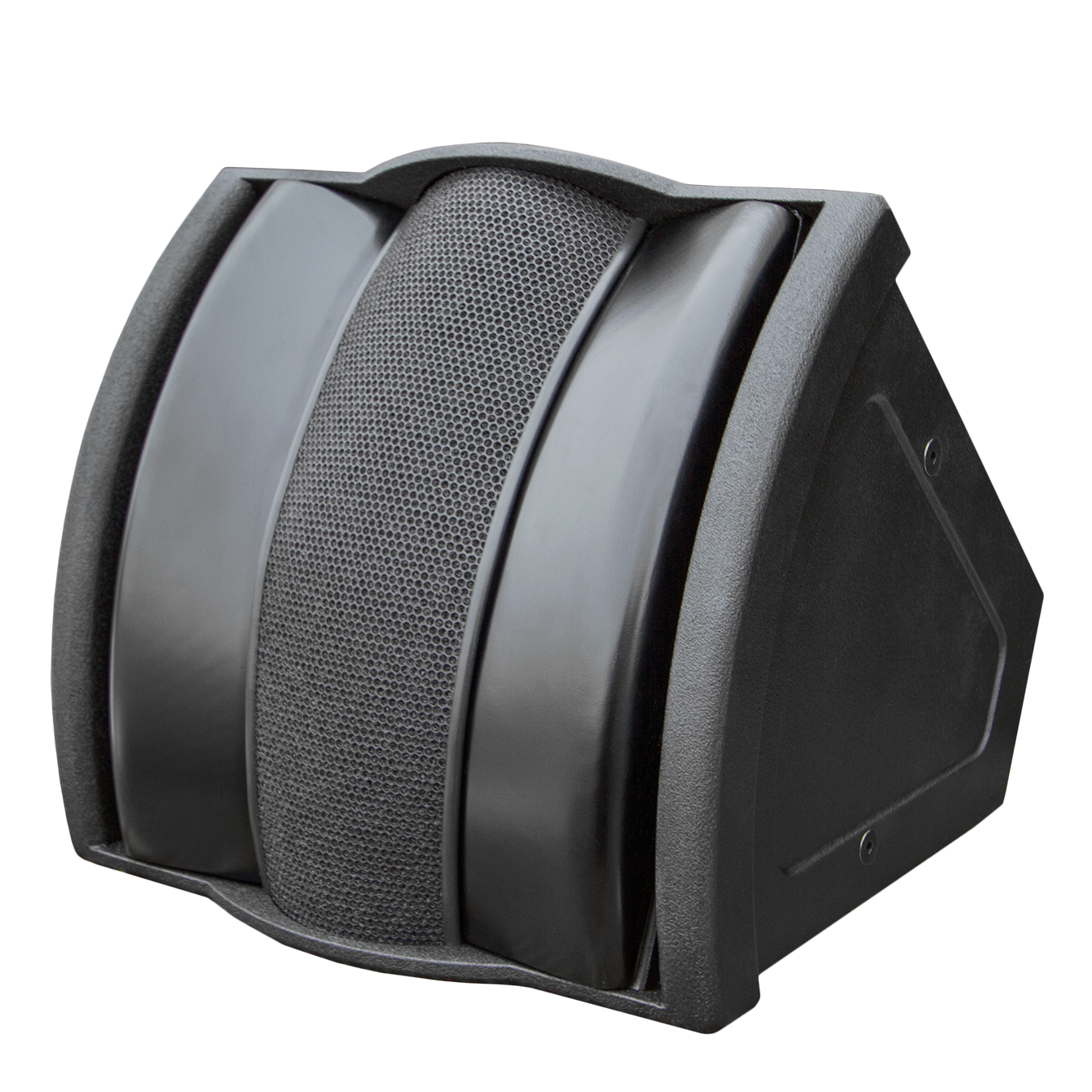

10SPOT
Clair Brothers
Passive Coaxial Point Source
[특 징]
- Coaxial, Horn Loaded
- Two-Way Passive
- LF Device: 10in (254mm)
- HF Device: Exit 1in (25.4mm); Voice Coil Diameter: 2.5in (63.5mm)
- Asymmetric Horizontal Dispersion: 90° H at Top, 135° H at Bottom
- 45° Vertical
- Integral Rigging Points
- Durable Polyurea Coating
- (2) EP-4 Connectors (1 Male, 1 Female) & (1) 4-Pos. Terminal Strip
[사 양]
- Frequency Response: 90Hz–20kHz (+/- 2dB) | (-10dB Point) 70Hz
- Recommended Power Amplifier: CB-PLM5K44 or CB-D40:4L
- Sensitivity (1 Watt @ 1 Meter): 103 dB SPL
- Max. Output: 131 dB SPL
- Drivers
LF: (1) 10 in (254mm); VC diam. 2.5 in (63.5mm)
HF: (1) VC diam. 2.5 in (63.5mm); Exit 1 in (25.4 mm)
- Nominal Impedance: LF 8 Ohms | HF 16 Ohms
- Power Handling: 300W Program / 600W Peak
- Dispersion
Asymmetric Horizontal: 90° H at Top, 135° H at Bottom
Vertical: 45° V
- Dimension(H x W x D): 418.2 x 417 x 392.6mm
- Weight: 15.9kg
