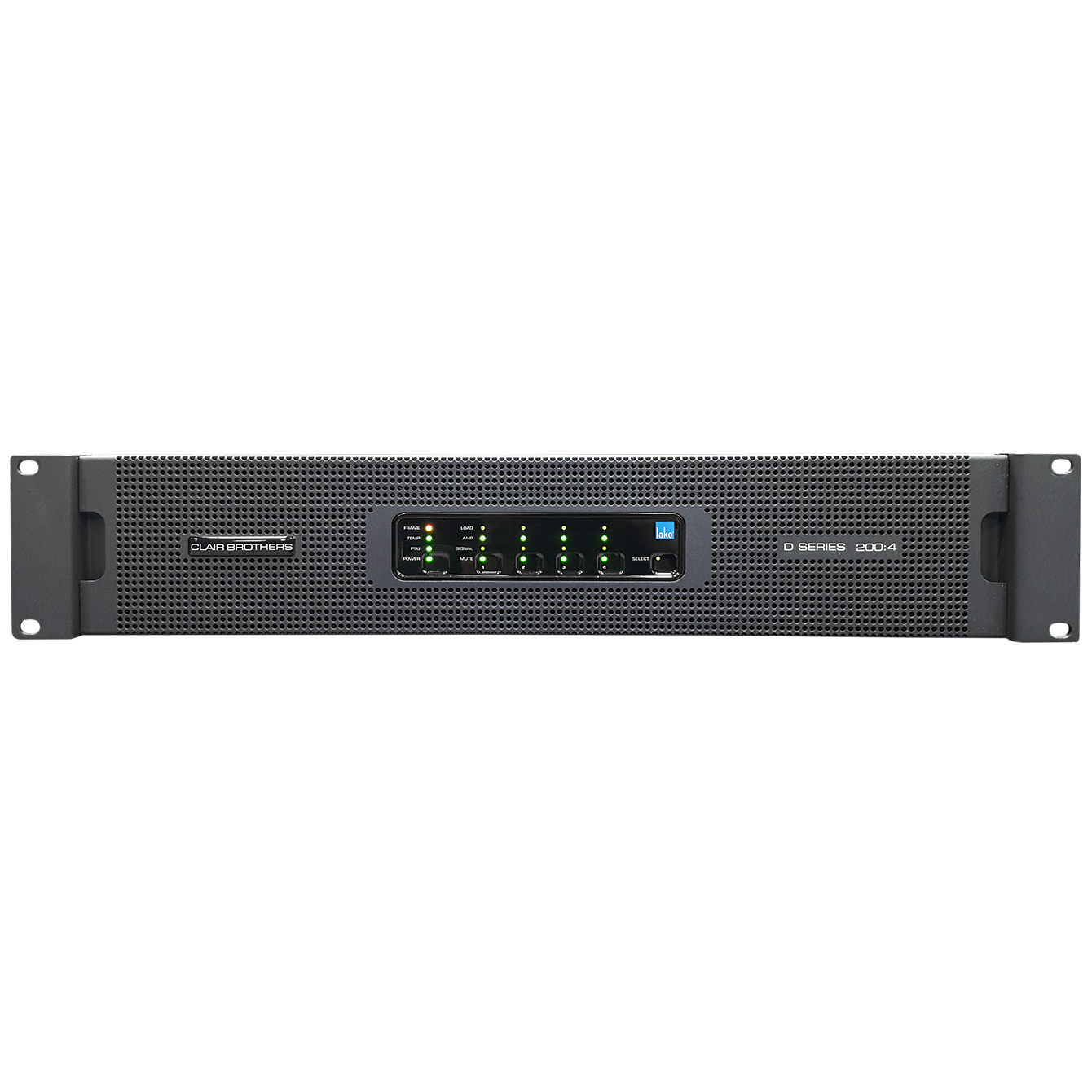

CB-D 200:4L
Clair Brothers
D Series: The Integration Superpower
[특 징]
- Four-channel amplifier
D 200:4 - 20000 W of total output power (4 x 5000 W nominal)
- Rational Power Management (RPM)
- Dedicated on-board surveillance & load monitoring system
[사 양]
General
- Processing / Network : Lake / Dante
- Numbers of amplifier channels : 4
- Total burst power all channels (share among channels with RPM) : 20000 W
- Dimensions (H x W x D) : 88 x 483 x 424 mm
- Weight : 16.5 kg
Max. Output Power (all ch.’s driven)
- 2 ohms : 4400 W
- 2.67 ohms : 5000 W
- 4 ohms : 4400 W
- 8 ohms : 2300 W
- 16 ohms : 1150 W
- Hi-Z 70 V : 3300 W
- Hi-Z 100 V : 4700 W
Max Output Power (Single Channel)
- 2 ohms : 4400 W
- 2.67 ohms : 5900 W
- 4 ohms : 4600 W
- 8 ohms : 2300 W
- 16 ohms : 1150 W
- Hi-Z 70 V : 3300 W
- Hi-Z 100 V : 4700 W
Audio Performance (Amplifier platform with digital input)
- THD + N 20 Hz - 20 kHz for 1 W : < 0.05 %
- THD + N at 1 kHz and 1dB below clipping : < 0.04 %
- Dynamic range : > 114 dB
- Channel separation (Crosstalk) at 1 kHz : > 70 dB
- Frequency response (1 W into 8 ohm, 20 Hz - 20 kHz) :
+/- 0.05 dB
- Internal sample rate / Data path : 48 / 96 kHz / 32 bit float point
- Product propagation delay AES 96 kHz / analog input : 1.61 / 1.68 ms
