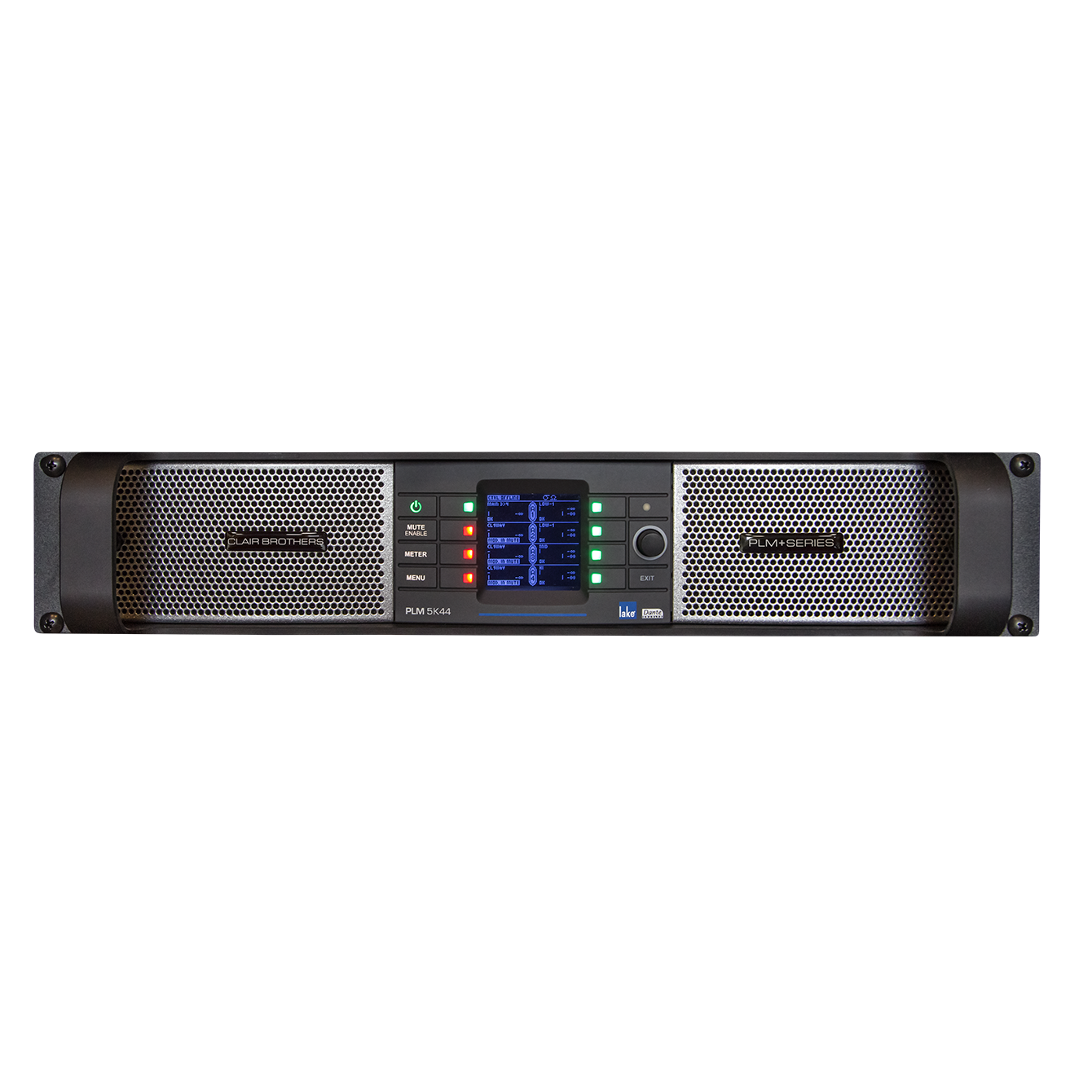

CB-PLM+ Powered Loudspeaker Management System



[특 징]
- 4 x 1250 W nominal output power for a total of 5000 W
- Any channel is capable of delivering up to 2000 W power output, from total available power
- 2U chassis weighing only 11.4 kg
- Four ‘Lake Class’ analog inputs with Iso-Float™ ground isolation
- Two AES3 on XLR digital inputs (4 audio channels)
- Eight dual-redundant Dante network audio inputs and outputs
- Compatible with PLM, Lake, LM Series and D Series
- Rational Power Management (RPM) - Flexible power output allocation across channels of the CB-5K44 model to match requirements, enabling more efficient use of amplifier inventory
- Copper-finned Intercooler with transversemounted output devices
- Amplifier Design: Class D output stage

[사 양]
General
- Processing / Network : Lake / Dante
- Numbers of amplifier channels : 4
- Total burst power all channels (share among channels with RPM) : 5000 W
- Dimensions (H x W x D) : 88 x 483 x 424 mm
- Weight : 11.4 kg

Max. Output Power (all ch.’s driven)
- 2 ohms : 900 W
- 2.67 ohms : 1250 W
- 4 ohms : 1250 W
- 8 ohms : 1250 W
- 16 ohms : 700 W
- Hi-Z 70 V : 1300 W
- Hi-Z 100 V : 1250 W

Max Output Power (Single Channel)
- 2 ohms : 900 W
- 2.67 ohms : 1250 W
- 4 ohms : 1750 W
- 8 ohms : 1350 W
- 16 ohms : 700 W
- Hi-Z 70 V : 1450 W
- Hi-Z 100 V : 2000 W

Audio Performance (Amplifier platform with digital input)
- THD + N 20 Hz - 20 kHz for 1 W : < 0.05 %
- THD + N at 1 kHz and 1dB below clipping : < 0.04 %
- Dynamic range : > 112 dB
- Channel separation (Crosstalk) at 1 kHz : > 70 dB
- Frequency response (1 W into 8 ohm, 20 Hz - 20 kHz) :
+/- 0.05 dB
- Internal sample rate / Data path : 96 kHz / 32 bit floating point
- Product propagation delay AES 96 kHz / analog input : 1.61 / 1.68 ms
